Nastec MIDA

Nastec MIDA

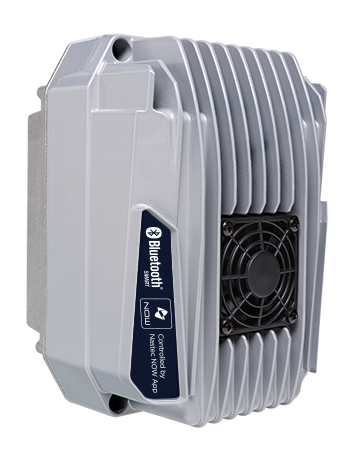

The flexible Nastec MIDA Solar is a solar pump inverter which allows the creation of new solar water pump systems or conversion of existing pumping systems. IP66 protection makes it ideal for dusty or humid environments. It’s aluminium case and independent venting system provides excellent mechanical and thermal performance.

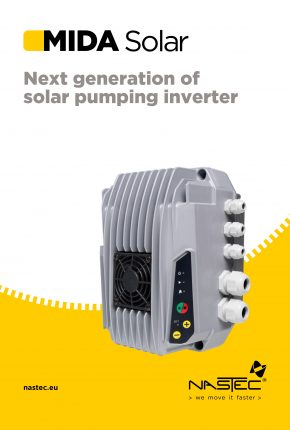

Download the Nastec MIDA Brochure

Nastec Mida Solar

Maximum Power Point Tracking (MPPT) – Always the maximum power available

Based on the variations of solar irradiation and temperature, MPPT maximises the electrical power drawn from the panels and therefore the amount of water pumped. The greater the solar irradiation the faster the pump’s rotation speed, and consequently water flow increases.

When solar irradiation decreases (due to clouds or the different times of day), the pump reduces frequency and therefore the flow, but it continues to provide water until the irradiation falls below a minimum level necessary to ensure operation.

MPPT Graph
Nastec MIDA

Key Features

  • Able to integrate into new or existing systems. Can be used with any traditional AC pump.
  • IP66 protection allows for humid or dusty environments.
  • Remote control through Nastec NOW mobile app.
  • Equipped with an internal “Boost” circuit, able to increase the voltage coming from solar panels.
  • Overvoltage, undervoltage, overcurrent, no load and overtemperature protection.
